Wyrestorm  |  SKU: CAM0402BRG

Wyrestorm 4K Camera Bridge and Mixer| 4K30Hz | 4x Wired Inputs (2xHDMI, 2xUSB) | HDMI/USB Output (CAM0402BRG)

Sold As: EACH


  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).


Description

The CAM-0402-BRG is a compact and powerful 4K multi-camera video bridge designed to simplify video switching and integration for conferencing, streaming, recording, and hybrid events. Supporting up to four wired inputs (2x HDMI, 2x USB), this device delivers a unified video output via USB or HDMI — all in stunning 4K resolution.

Whether you’re combining professional cameras or document cameras from across the network, the CAM-0402-BRG offers seamless multiview capabilities and flexible control options via Buttons, Web UI, API, or RS-232. It appears as a standard USB webcam (UVC/UAC), making it plug-and-play with all major conferencing and streaming platforms like Microsoft Teams, Zoom, OBS, and more.

Now with native integration into Microsoft Teams via the WyreStorm Teams app, users can control camera switching directly from within a meeting — no additional software or hardware required.

Perfect for corporate AV, education, live production, and government environments, CAM-0402-BRG brings professional-grade mixing into an easy-to-use form factor.



Audio & Video

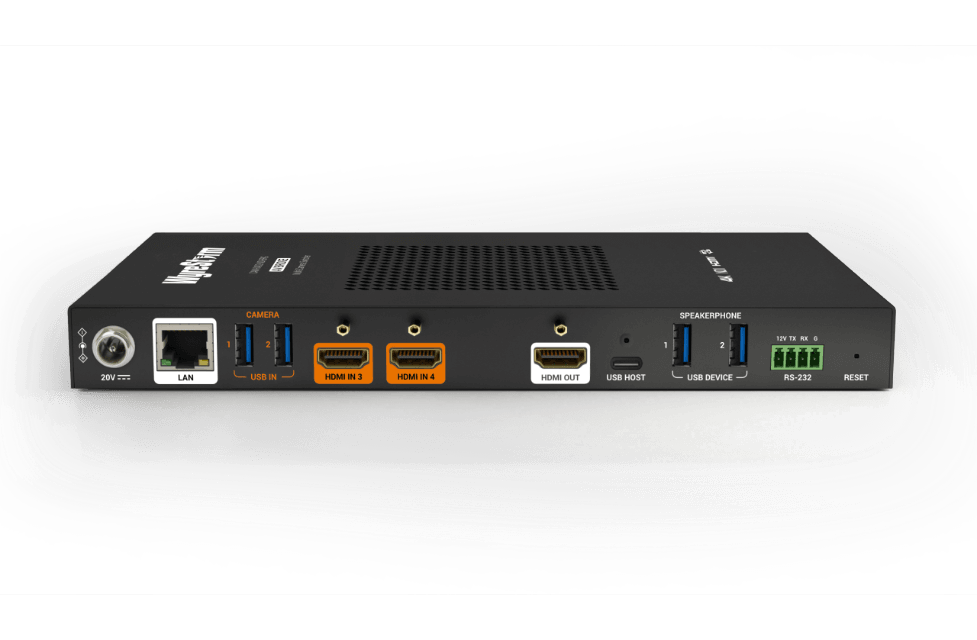

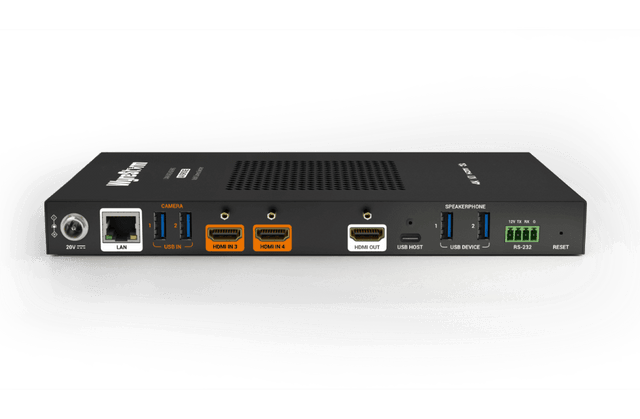

Inputs

2 x USB 3.0 Type-A (up to 3840×2160@30Hz MJPEG)
2 x HDMI (up to 3840×2160@30Hz)

Outputs

1 x USB Type-C (up to 3840×2160@30Hz, MJPEG)
1 x HDMI (up to 3840×2160@30Hz)

Multiview Support

HDMI out and USB HOST share the same signal and support multiview display (up to quad-view)

Control Options

RS-232, Web GUI, LAN

OS Compatibility

Windows 10 or above
macOS 10.15 or above

USB Protocols

UVC & UAC

HDCP Compliance

HDCP 2.2

CEC Support

HDMI outputs support CEC one-touch play and standby (customizable via Web UI)

EDID Coniguration

Web UI and API adjustable
Default: 4K@30Hz stereo audio

Video Formats

HDMI: up to 4K@30Hz
USB: MJPEG up to 4K@30Hz

Audio Formats

HDMI IN:RAW PCM, 16-bit, 2-channel, 32/44.1/48KHz
USB IN:RAW PCM, 16-bit, 2-channel, 16/32/48KHz
HDMI OUT:RAW PCM, 16-bit, 2-channel, 48KHz
USB HOST: RAW PCM, 16-bit, 2-channel, 48KHz

Supported Standards

DCI | RGB

Maximum Pixel Clock (HDMI)

300MHz

POWER

Power Supply

DC 20V/3A via 5.5/2.1mm barrel connector

Power Consumption

36W

Specifications

  • Unit of Measure
    EACH
  • Class
    A/V Communication
