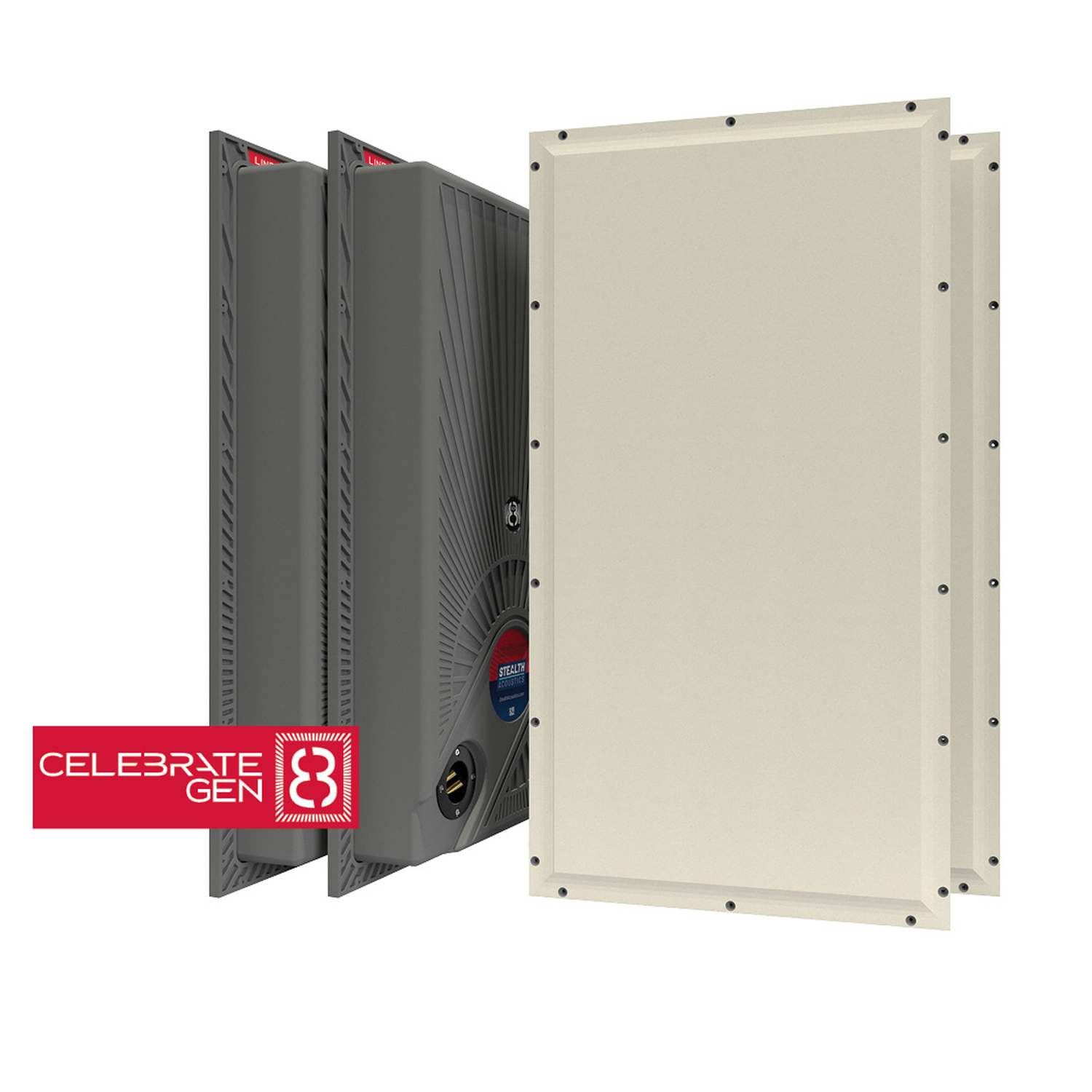

Dual 8" Invisible Subwoofer System - (consists of 2 panels - use both panels)_|_Designed specifically for the LR6G for extra impact in critical listening zones. (LR24WEA)
Sold As: EACH
Dual 8" Invisible Subwoofer System - (consists of 2 panels - u...
Description
Description
Frequency Response:
30Hz to 150Hz (see Figure 1)
Power Capacity:
160 watts RMS (per pair)
100 watts minimum recommended power (per pair)
Sensitivity:
86 dB (1 watt / 1 meter)
Driver Components:
Low-frequency: 1½" (38 mm) voice coil 8" (203 mm) woofer,
20 oz. (567 gr) ceramic magnet
System Impedance:
8Ω nominal.
Polar Dispersion:
170 degrees vertical and horizontal
Crossover Frequency:
Requires amplifier with low pass filter. 80Hz
with 18 dB slope recommended.
Dimensions:
Width: 15⅞" (403 mm)
Height: 23⅞" (606 mm)
Mounting Depth: 3¼" (83 mm)
2 13/16” (72 mm) with back box removed
Product Weight:
14 lbs. (6.3 kg) each panel
Shipping Weight:
30 lbs. (13.6 kg) per pair
Included Accessories:
Mounting shims
Mounting screws
Optional Accessories:
SA255-MKII Stealth Acoustics Subwoofer Amplifer
PS-24 PlaceSaver™
MBX-24 UL Listed Metal Back Box
MBA-24 UL Listed Metal Back Box - Adjustable
MBC-24 Concrete Back Box
SK-1 Shim Kit
