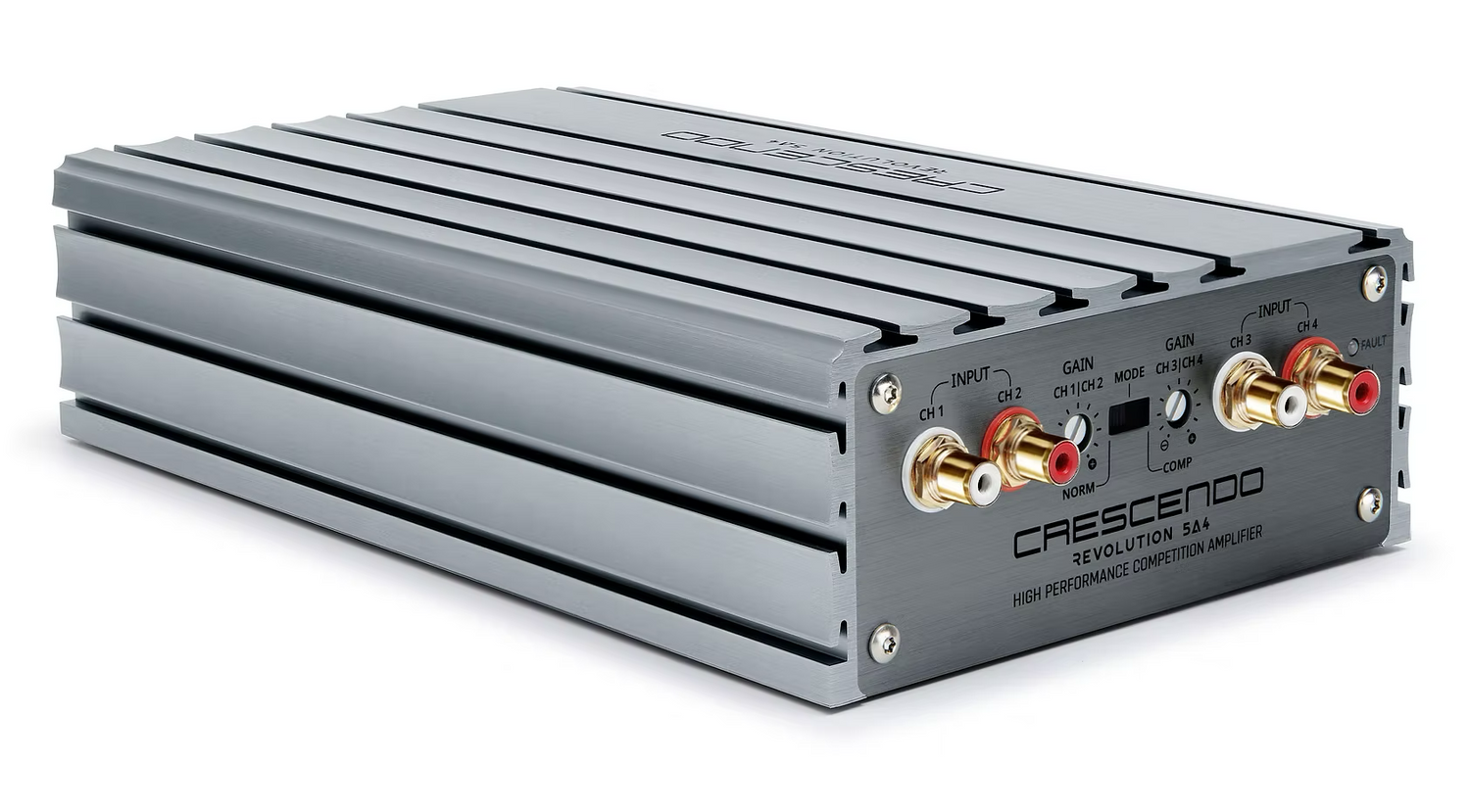

REVOLUTION 5 Series Class A/B High-Bias 4-Channel Amplifier (75 Watts x 4 RMS @ 4 Ohm) (5A4)

High-performance 4-channel car amplifier designed to excel in competition-level environments. The Revolution 5A4 combines dynamic headroom with precise control - delivering full-bodied vocals, articulate detail, and the kind of impactful, controlled sound that separates winning systems from the rest.

Power Output:

• 4 x 75W RMS @ 4 ohms (14.4V)
• 4 x 125W RMS @ 2 ohms (14.4V)
• 2 x 210W RMS @ 4 ohms bridged (14.4V)

Performance Specifications:

• Frequency Response: 7Hz - 40kHz
• Signal-to-Noise Ratio: 108dB
• Total Harmonic Distortion: 0.08%
• High-Resolution Audio Support: Up to 32-bit/196kHz

Physical Dimensions:

• Length: 270mm (10.6 inches)
• Width: 150mm (5.9 inches)
• Height: 60mm (2.4 inches)
• Weight: 2.1kg (4.6 lbs)

Electrical Requirements:

• Operating Voltage: 8.5V - 18V DC
• Minimum Input Level: 0.2V
• Class: AB (High-Bias)

Construction Features:

• Aluminum heatsink design
• Premium component construction
• Competition-grade circuit architecture
• DSP-ready connectivity
