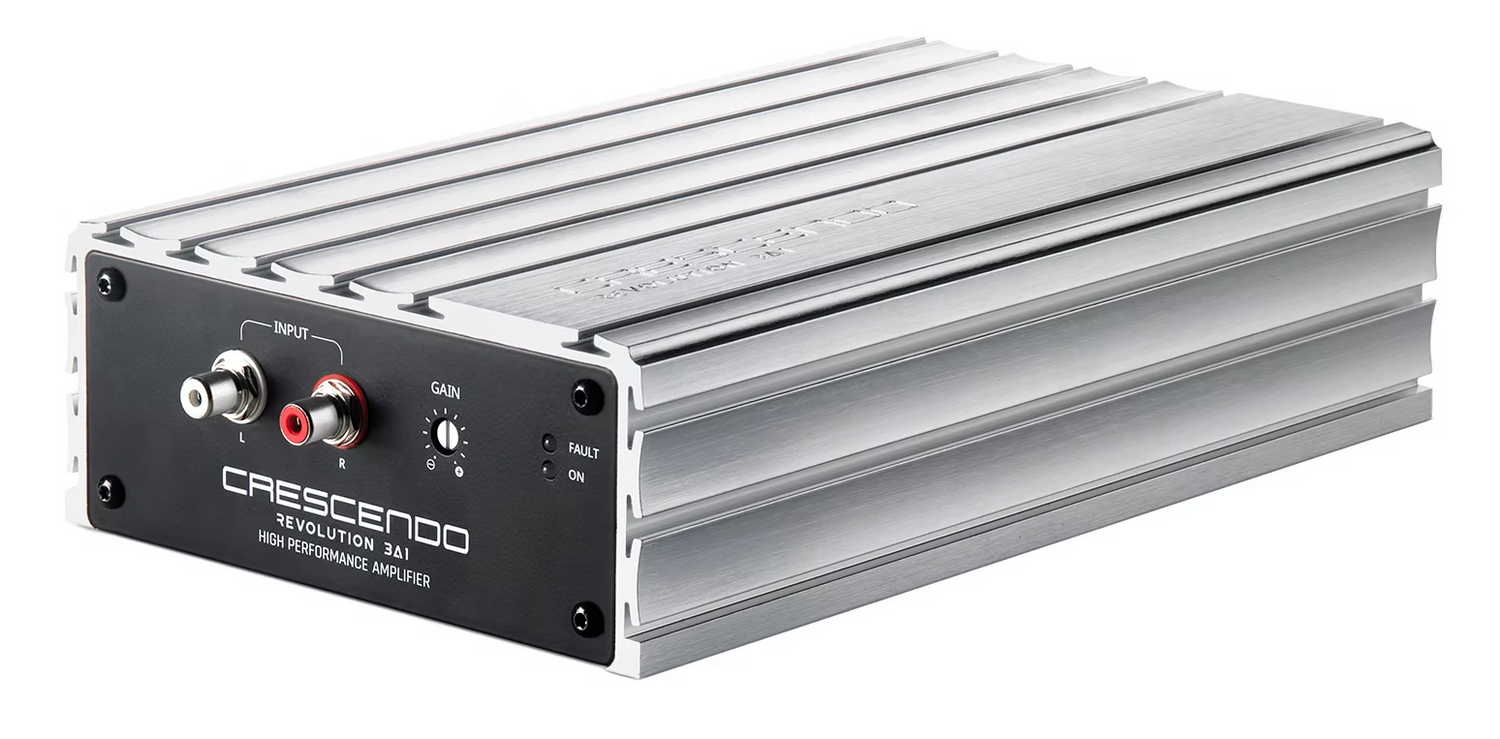

REVOLUTION 3-Series Class D Mono Block Amplifier (1,000 Watts x 1 RMS @ 1 Ohm) (3A1)

1000W Class D mono amplifier combining high efficiency with refined sound quality. The Revolution 3A1 features IRS2092S technology for efficient, controlled power delivery - subwoofer authority with the reliability and sound quality.

Power Output:

• RMS Power at 1 Ohm: 1000W
• RMS Power at 2 Ohm: 600W
• RMS Power at 4 Ohm: 400W
• Maximum Power Output: 1000W RMS
• Power Supply: 12V DC automotive

Physical Dimensions:

• Length: 270mm (10.6")
• Width: 150mm (5.9")
• Height: 60mm (2.4")
• Weight: 2.3kg (5.1 lbs)
• Mounting: Standard amplifier rack compatible

Technical Performance:

• Amplifier Class: Class D
• Chipset: IRS2092S advanced control IC
• Frequency Response: Full-range (20Hz - 20kHz)
• Signal-to-Noise Ratio: >95dB
• Total Harmonic Distortion: <0.1%
• Input Sensitivity: 0.2V - 5V adjustable

Connectivity & Controls:

• Input Connections: RCA line-level inputs
• Speaker Outputs: Professional-grade binding posts
• Power Connections: High-current power/ground terminals
• Control Features: Gain adjustment, frequency controls
• Protection Systems: Thermal, short circuit, reverse polarity

Construction Quality:

• Chassis Material: CNC-machined aluminum
• Heat Dissipation: Advanced thermal management
• Component Grade: Premium automotive-rated parts
• Finish: Professional anodized coating
• Warranty: Manufacturer limited warranty
