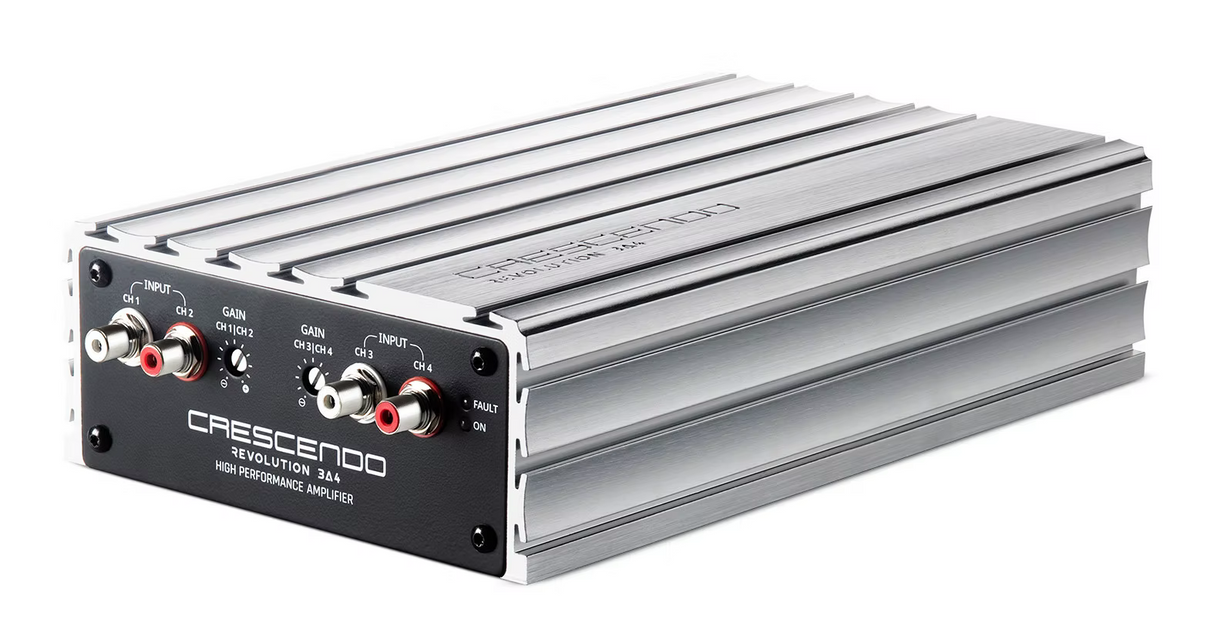

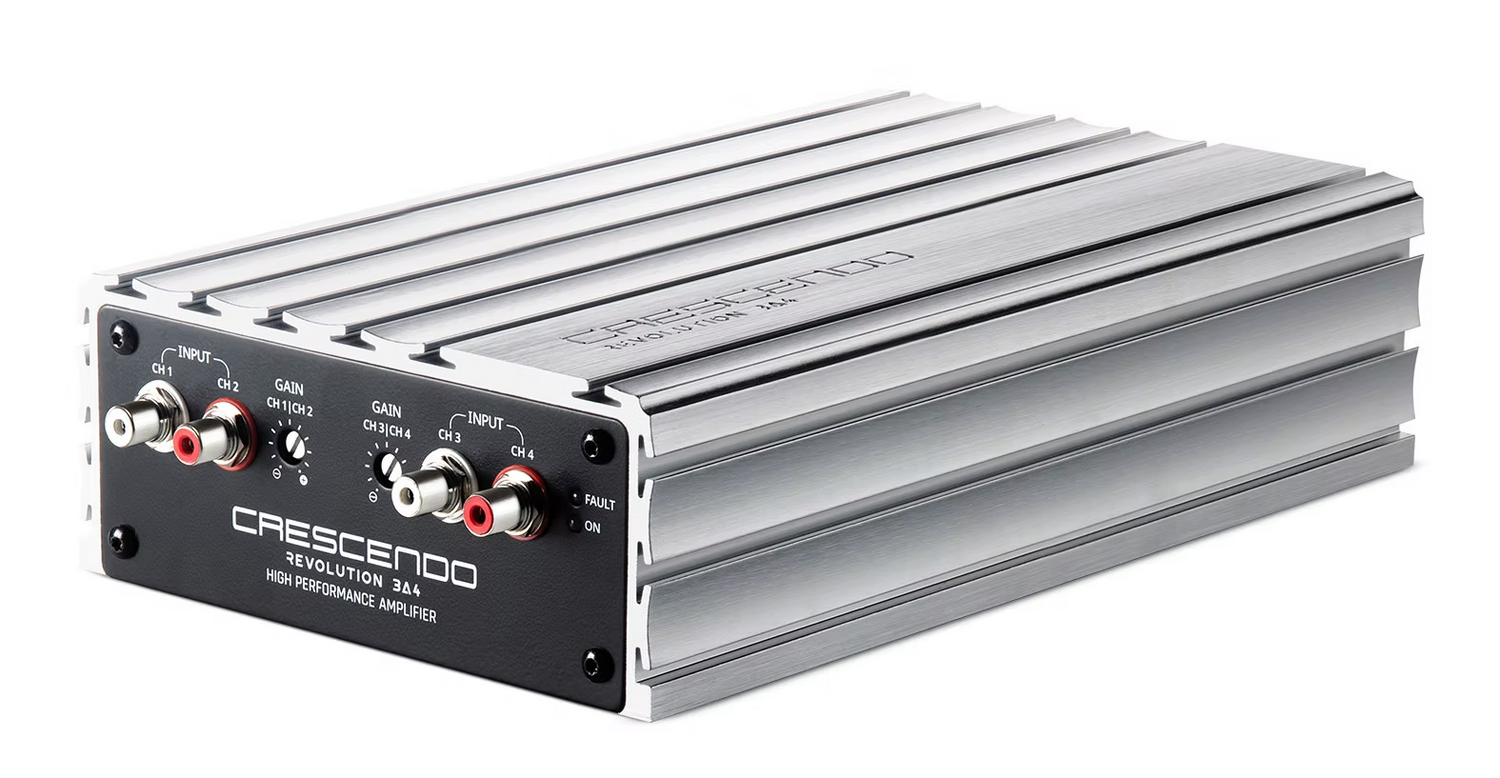

REVOLUTION 3-Series Class A/B 4-Channel Amplifier (70 Wattsx 4 RMS @ 4 Ohm) (3A4)

Compact 4-channel car amplifier with direct gain design for clean, transparent amplification. The Revolution 3A4 delivers refined, reliable sound quality - high-resolution performance in a compact design built for modern vehicle installations.

Power Output:

• RMS Power at 4 Ohms: 4 x 70W
• RMS Power at 2 Ohms: 4 x 110W
• Bridged Power at 4 Ohms: 2 x 220W
• Maximum Power Output: 440W RMS total
• Power Supply: 12V DC automotive

Physical Dimensions:

• Length: 270mm (10.6")
• Width: 150mm (5.9")
• Height: 60mm (2.4")
• Weight: 2.4kg (5.3 lbs)
• Mounting: Standard amplifier rack compatible

Technical Performance:

• Amplifier Class: Pure Class AB
• Design Philosophy: Direct gain topology
• Frequency Response: Wide bandwidth (20Hz - 20kHz)
• Signal-to-Noise Ratio: >90dB
• Total Harmonic Distortion: <0.1%

Connectivity & Controls:

• Input Connections: 4 x RCA line-level inputs
• Speaker Outputs: Professional-grade binding posts
• Power Connections: High-current terminals
• Control Features: Individual channel gain controls
• Protection Systems: Thermal, short circuit, overload

Construction Quality:

• Chassis Material: Premium aluminum construction
• Cosmetic Finish: Brushed aluminum with accent lines
• Component Grade: High-grade automotive components
• Heat Management: Advanced thermal design
• Reliability: Competition-grade durability
• Warranty: Manufacturer limited warranty
