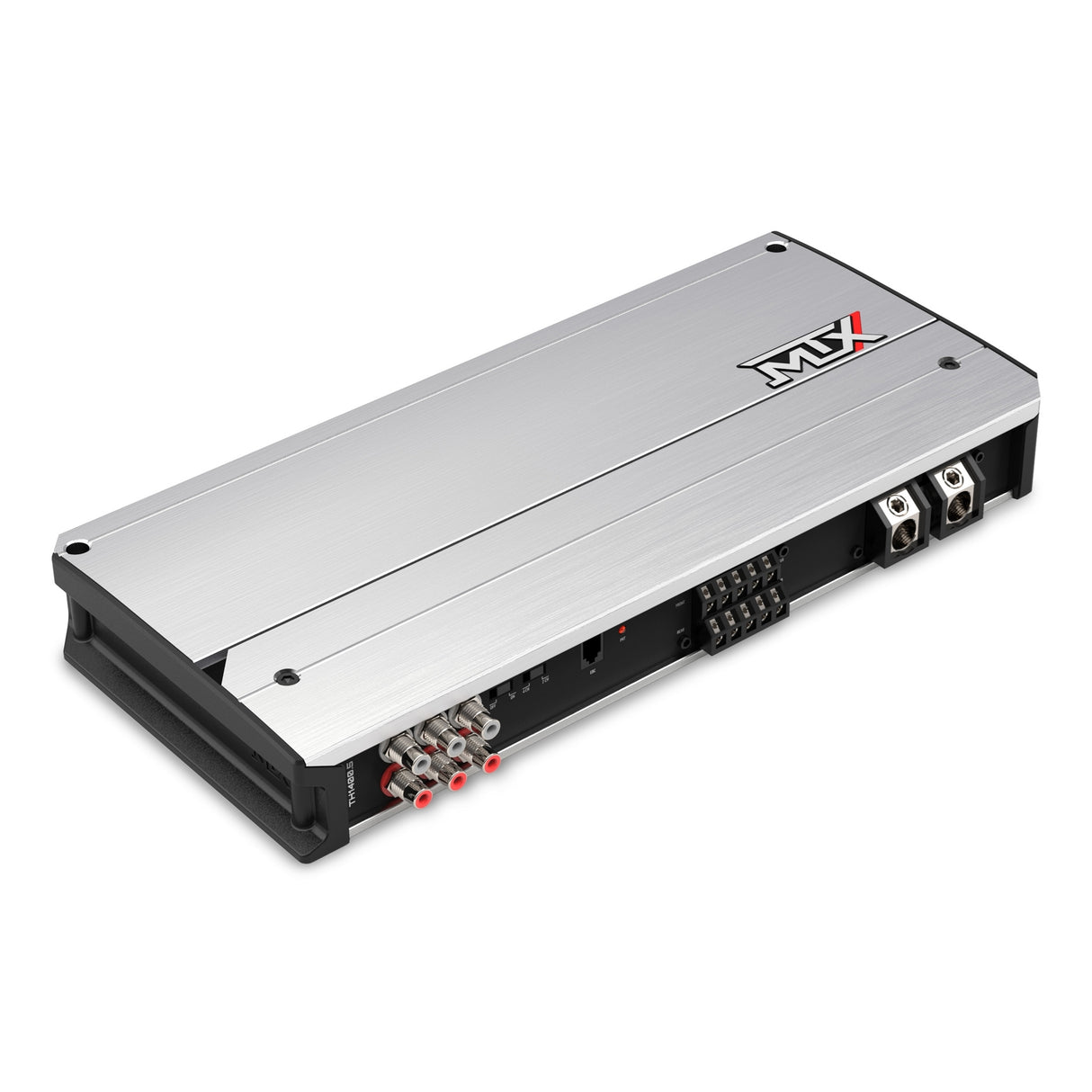

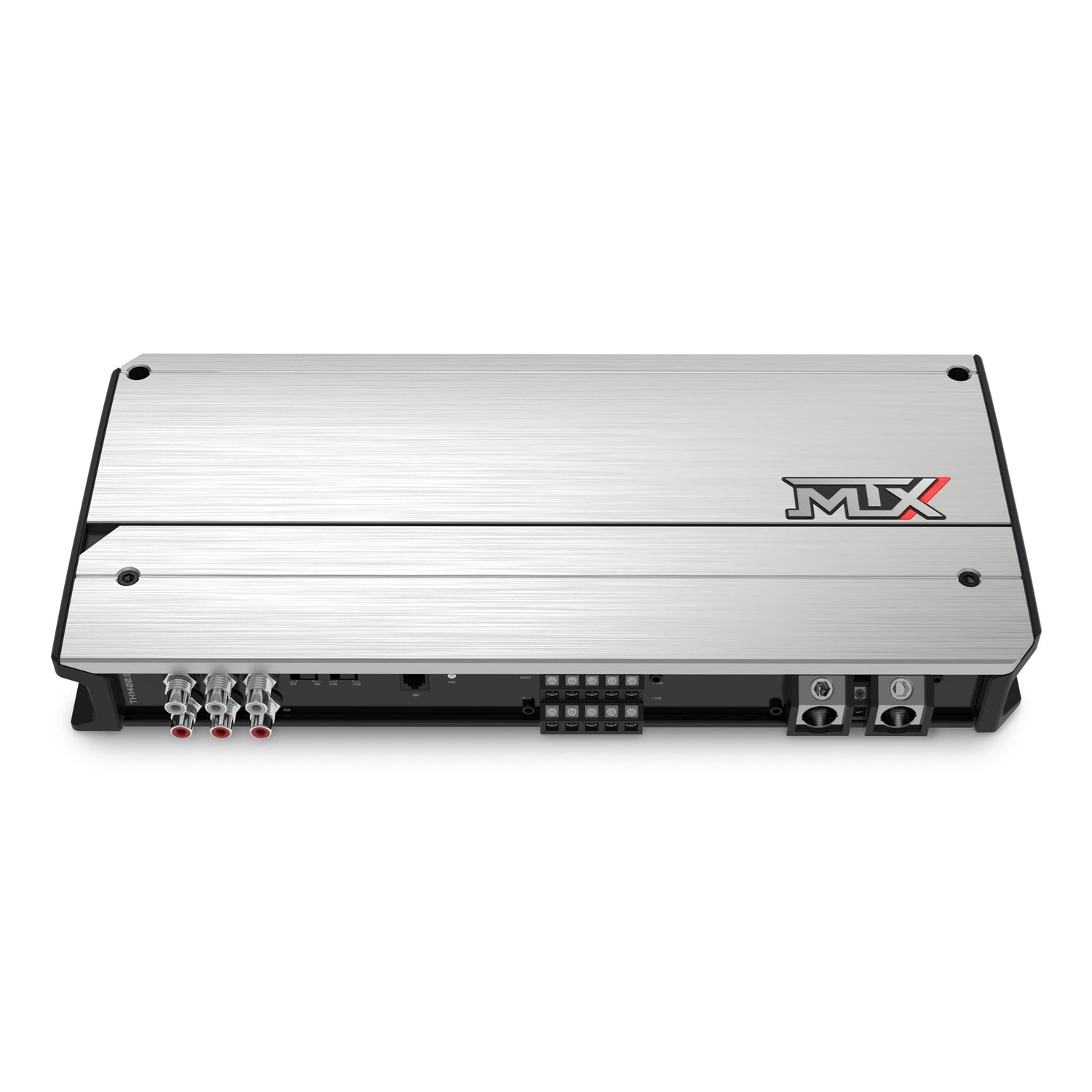

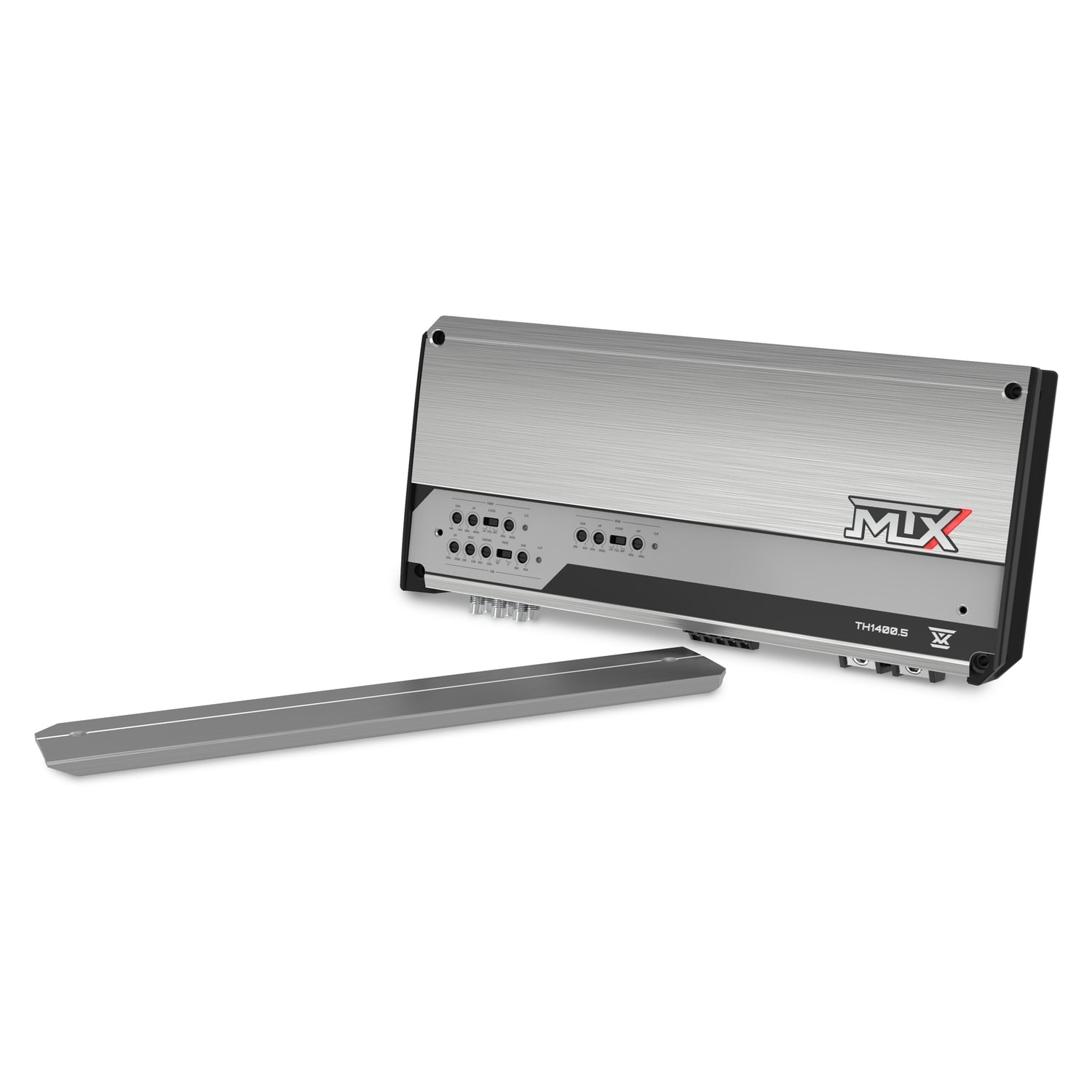

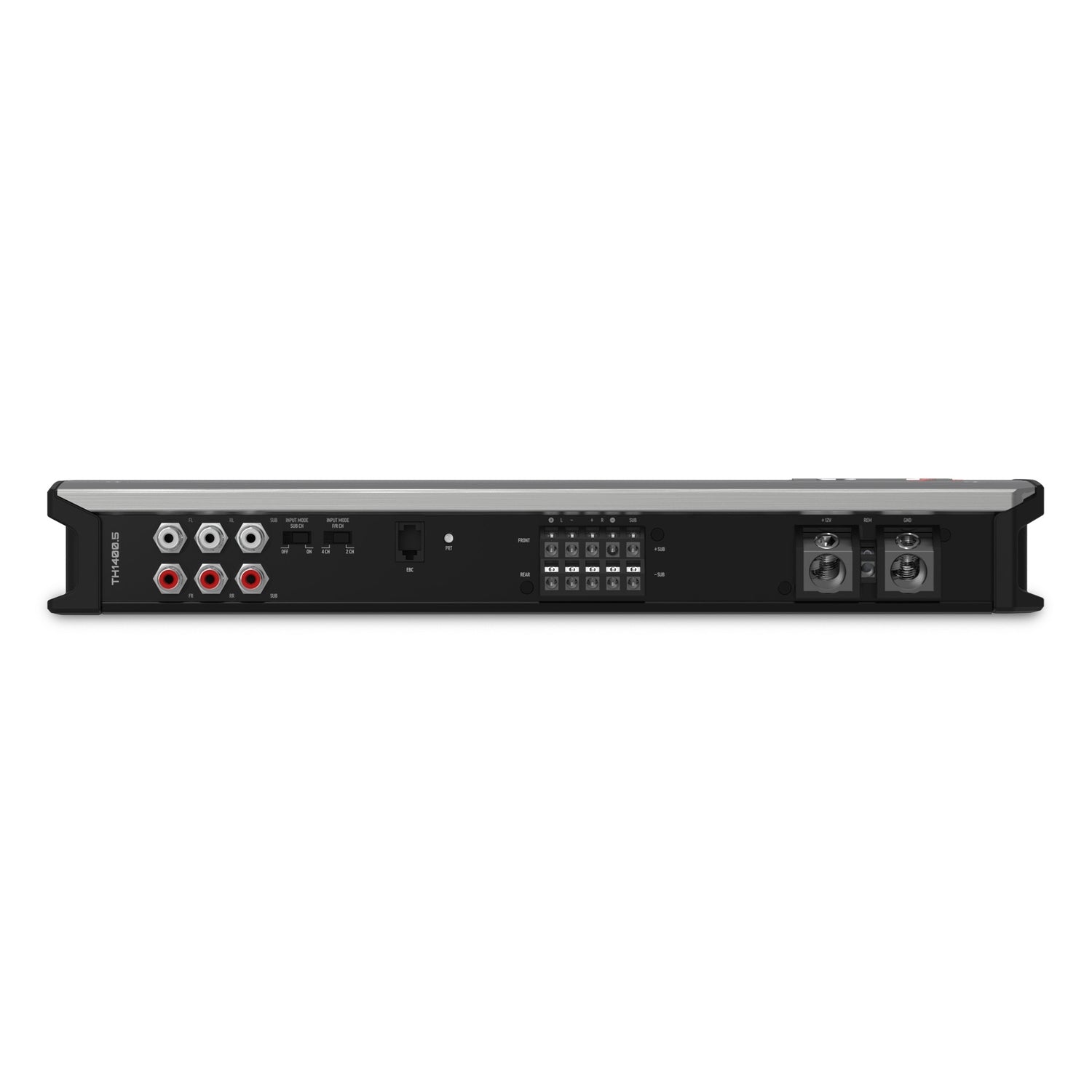

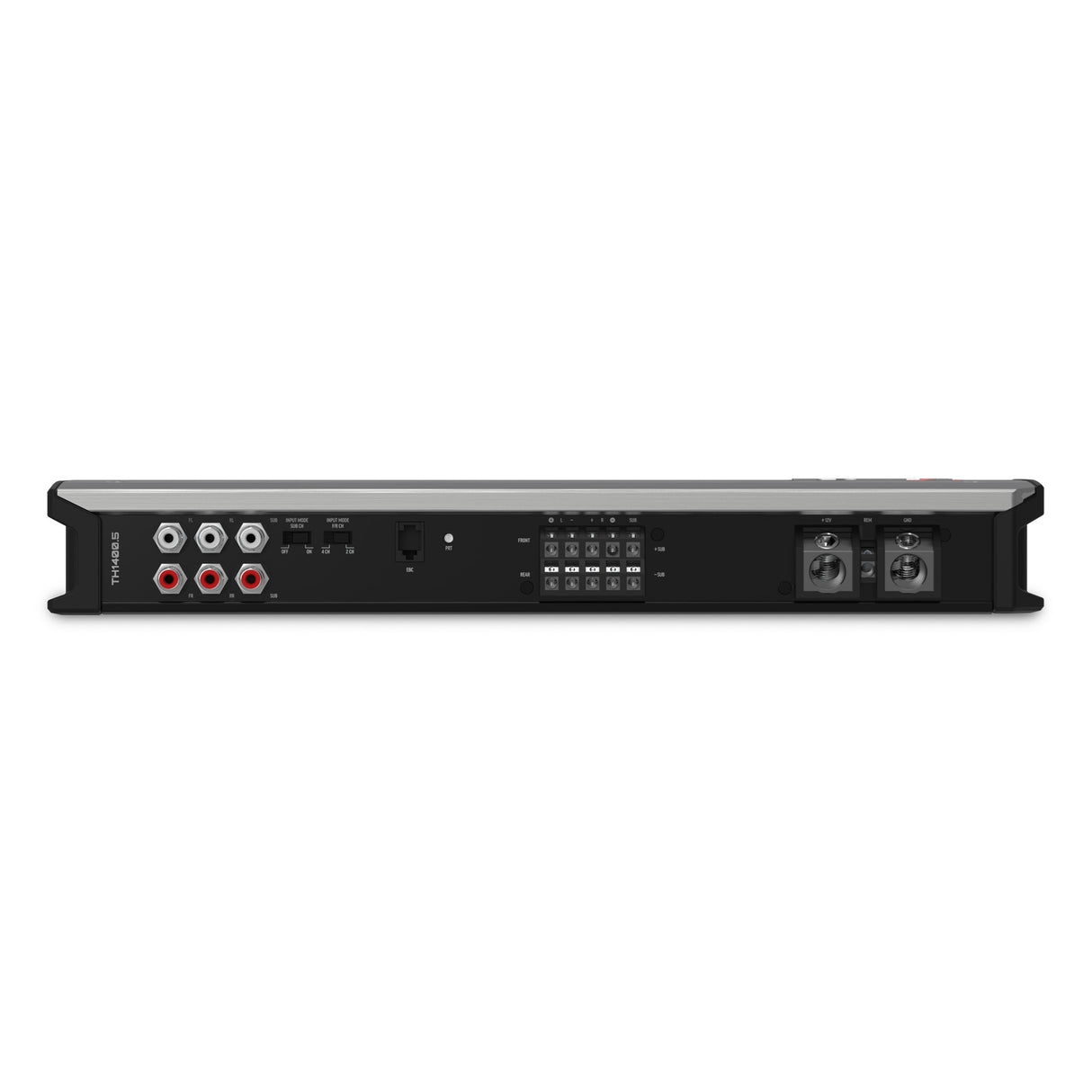

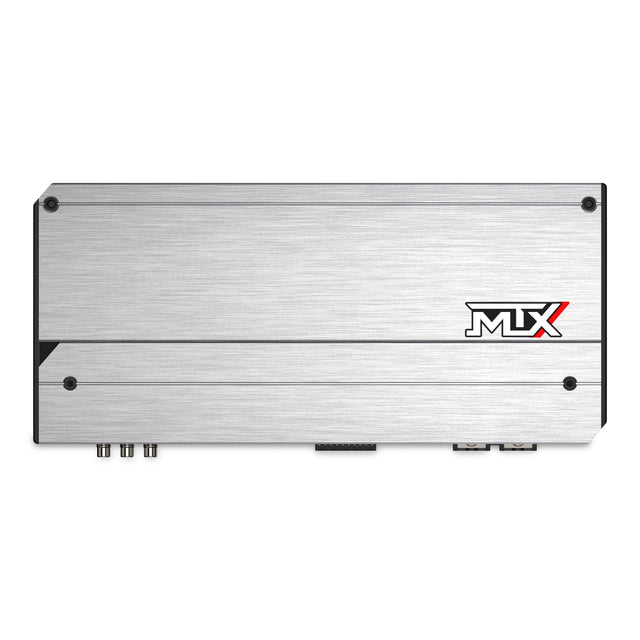

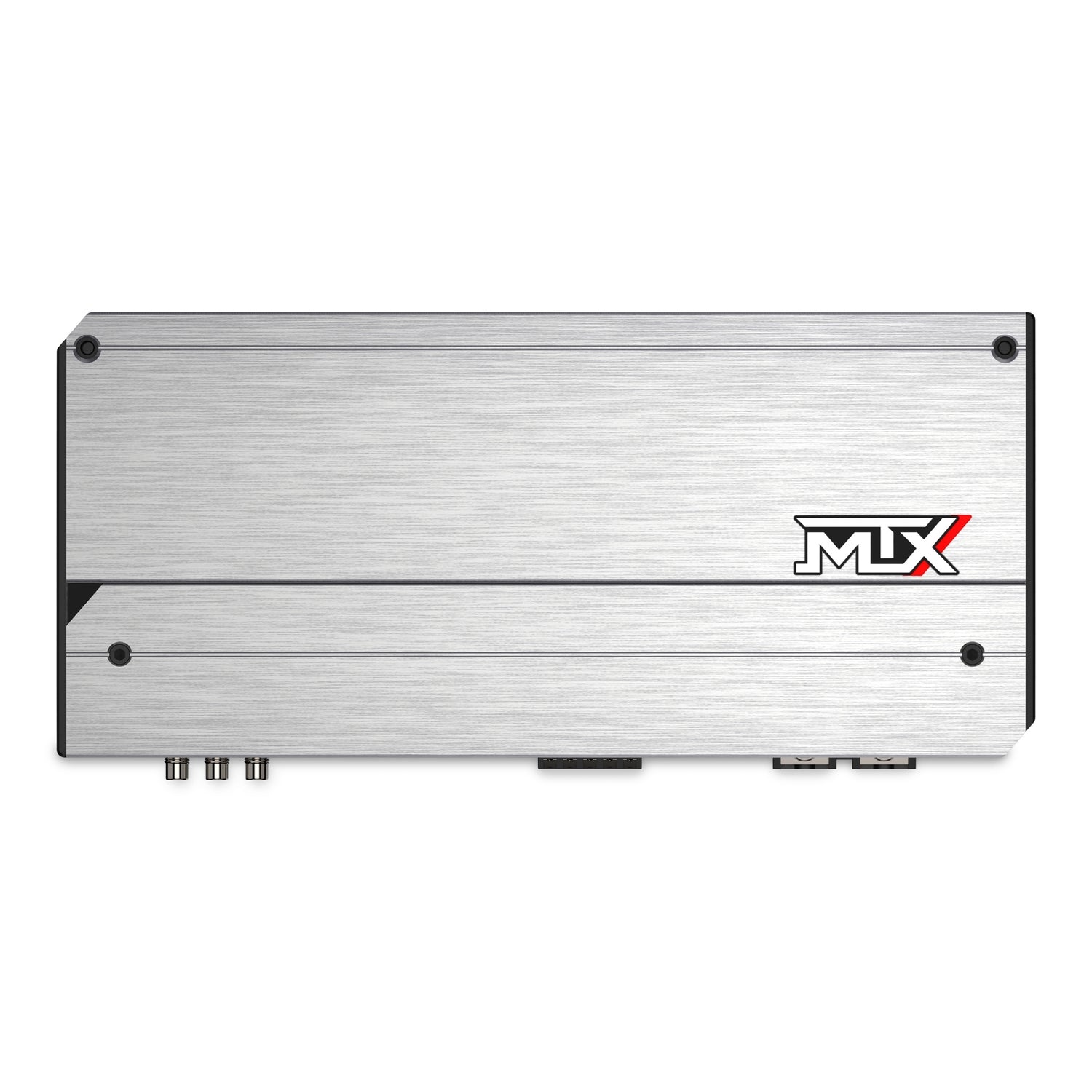

Class D 4 Channel Amplifier 150W X 4 @ 2½ + 800W X 1 @ 1½ (TH14005)

The TH1400.5 five-channel amplifier from MTX powers your entire car audio system with full-range clarity and deep, rich bass. Designed with dedicated channels for both speakers and a subwoofer, this compact amp delivers powerful, efficient performance and precise sound control for any setup. With its compact size, advanced protection features, and included bass control remote, it’s the perfect all-in-one solution for audiophiles.



• Description: 5-CHANNEL
• Topology: CLASS D
• 4Œ© RMS Power Output: 100W X 4 CHANNELS + 300W
• 2Œ© RMS Power Output: 150W X 4 CHANNELS + 500W
• 4Œ© RMS Bridged Power Output: 300W X 2 CHANNELS (1/2/3/4)
• 1Œ© RMS Power Output: 800W (SUB ONLY)
• THD: < 0.4%
• Signal to Noise Ratio: > 95DB
• Frequency Response: 20HZ - 20KHZ (CH1-4) 20HZ - 250HZ (SUB)
• Crossover: 40HZ - 400HZ (CH1-4) 50HZ - 250HZ (SUB)
• Subsonic Filter: 10HZ - 55HZ (SUB)
• Maximum Input Signal: 10V
