Wyrestorm  |  SKU: NHDCTLPROV2

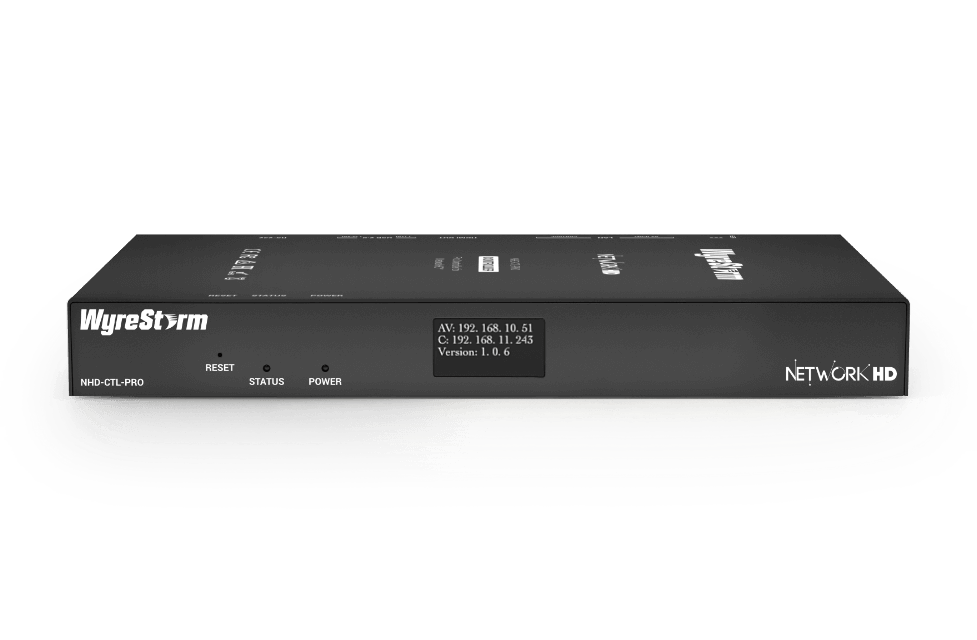

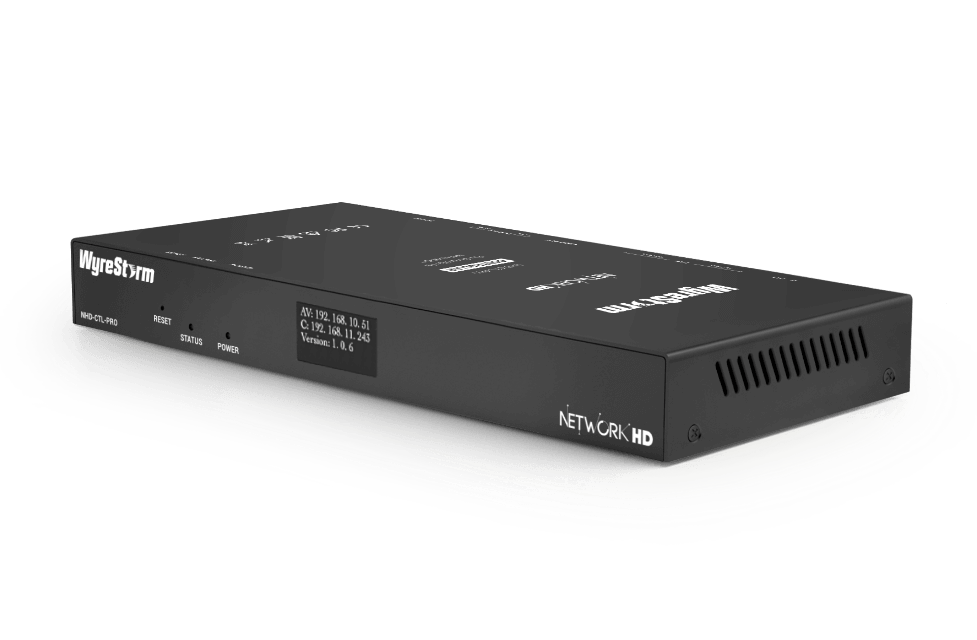

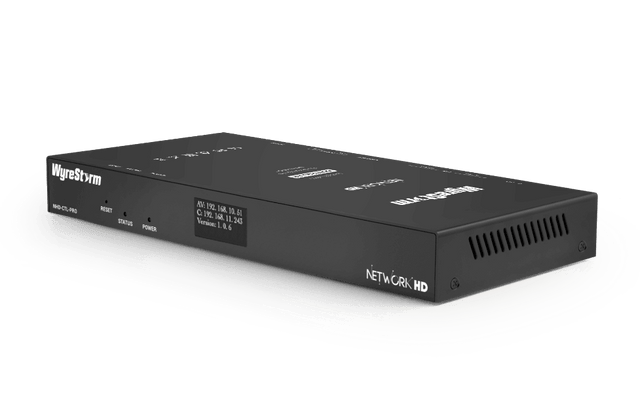

Pro Controller for NetworkHD Series | PoE | Dual NIC Network Isolation | Advanced Setup Interface & Wizard (NHDCTLPROV2)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

The NHD-CTL-PRO is the new brain for NetworkHD and reimagines how a system should operate. We’ve designed the NHD-CTL-PRO from the ground up to provide an innovative cutting-edge experience. The all-new unified setup environment allows all configurations to be made from one user interface. This includes adjusting IP address, naming endpoints, creating video walls, firmware updates and much more. This intuitive user interface can be accessed from any device with a web browser whether it be a computer, smartphone, or tablet. The NHD-CTL-PRO also includes a powerful setup wizard that guides you from start to finish making it incredibly easy to have a fully configured NetworkHD system in a matter of minutes.

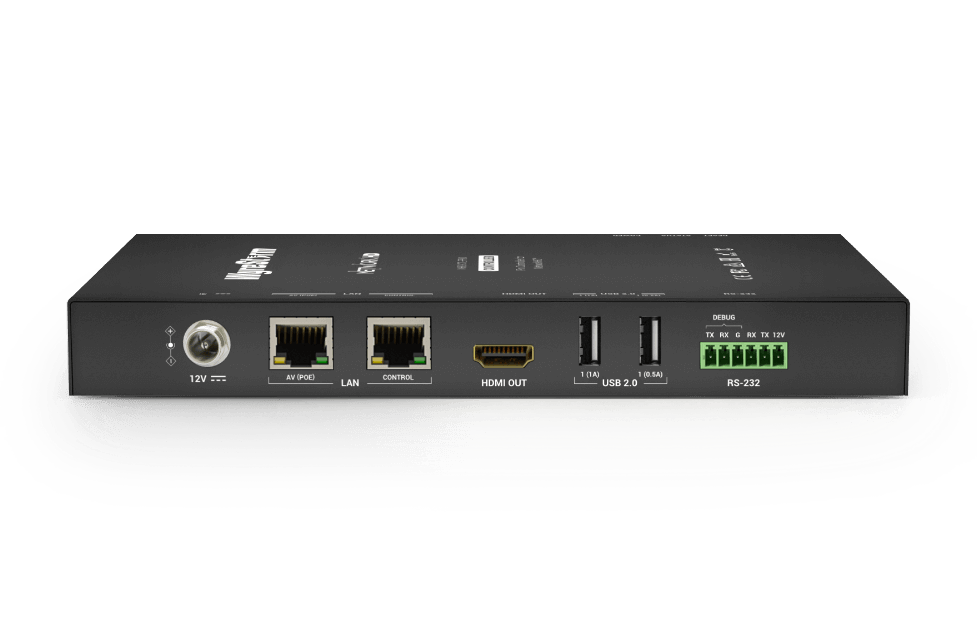

Network

2x 1GbE RJ45 (Control & AV)

RS-232

1x 6-Pin Phoenix Connector

Security Protocols

SSH | TLS | HTTPS

USB

Reserved for future use

HDMI

Reserved for future use

POWER

Power Supply

12v DC | PoE Compliant

Power Consumption

Max 15.4 | Average: 8w

ENVIRONMENTAL

Operating Temperature

0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature

-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

Dimensions

215mm x 120mm x 25mm/8.46”x 4.72”x 0.98”

Specifications
  • Unit of Measure
    EACH
  • Style
    Controllers
  • Class
    AV over IP
