Wyrestorm | SKU: RX704K

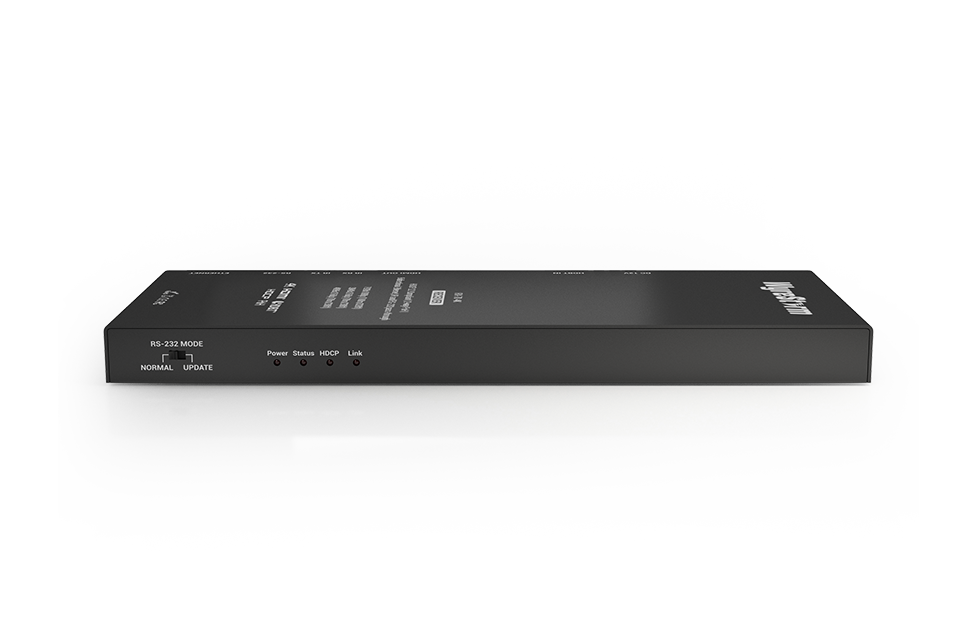

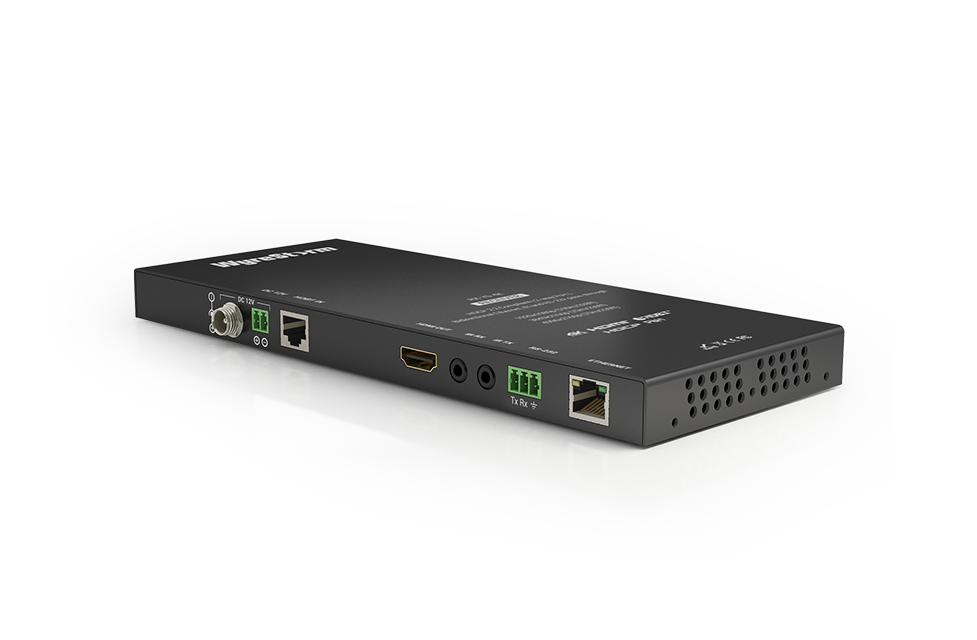

4K60Hz 4:2:0 HDBaseTª Receiver | PoH | Ethernet, IR & RS232 Passthrough (4K: 70m/230ft, 1080p: 100m/328ft) [For TX-70-4K] (RX704K)

Name: 4K60Hz 4:2:0 HDBaseTª Receiver | PoH | Ethernet, IR & RS232 Passthrough (4K: 70m/230ft, 1080p: 100m/328ft) [For TX-70-4K] (RX704K)
Brand: Wyrestorm
SKU: RX704K

Sold As: EACH

Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

The perfect complement to a WyreStorm HDBaseT™ matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.

AUDIO & VIDEO

Inputs

1x HDBaseT 8-pin RJ-45 female

Outputs

1x HDMI 19-pin type A female

Audio Formats

2ch PCM | Up to DTS-X and Dolby Atmos

End to End Latency

1920x1080p @60Hz 48bit
3840x2160p @30Hz 4:4:4 24bit
3840x2160p @24Hz 4:2:0 HDR 10bit
4096x2160p @60Hz 24bit 4:4:4

Color Depth

1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit per channel BT.2020

Maximum Pixel Clock

297MHz

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | EDID | DVI/D supported with adapter (not included)

HDBaseT

HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR, RS-232, and Ethernet

Ethernet

1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Bidirectional over HDBaseT

1x IR TX 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT
1x IR RX 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT

RS-232

1x 3-pin Phoenix Connector | Bidirectional over HDBaseT

POWER

Power Supply

12V DC 2A

Max Power Consumption

7.2W

PoH

48V 15.4W

Specifications

Unit of Measure

EACH
Class

Extenders
