Wyrestorm  |  SKU: SW0204VW

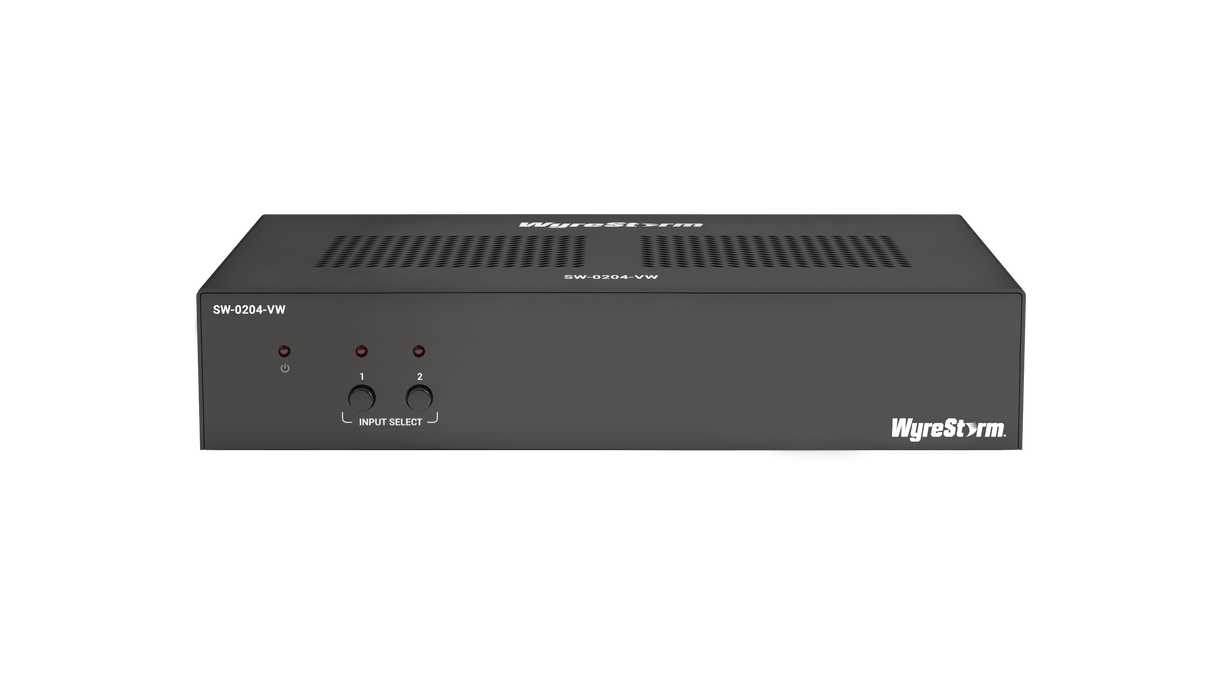

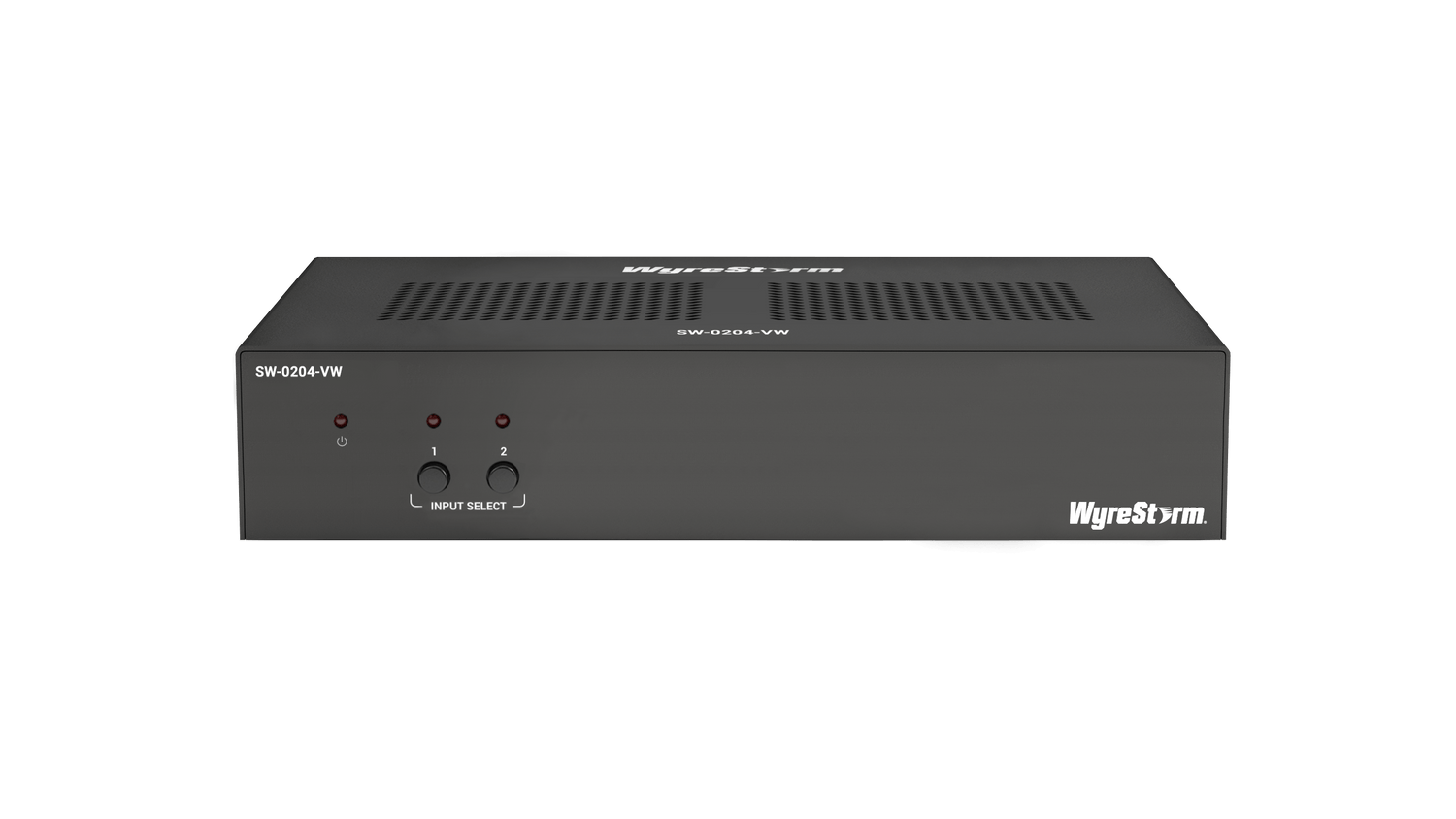

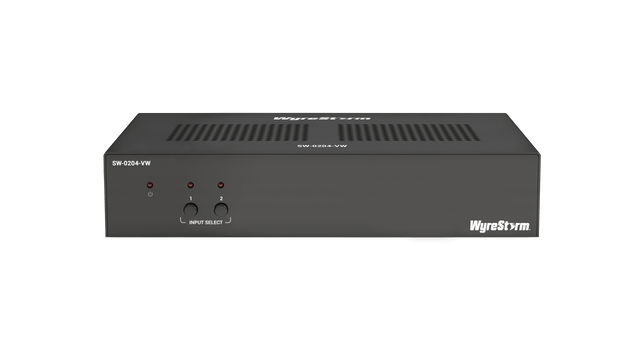

4K 60Hz 4-Output Video Wall | 1x4, 2x2 layout |Ultra-wide resolution support | WEB GUI and RS232 control (SW0204VW)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

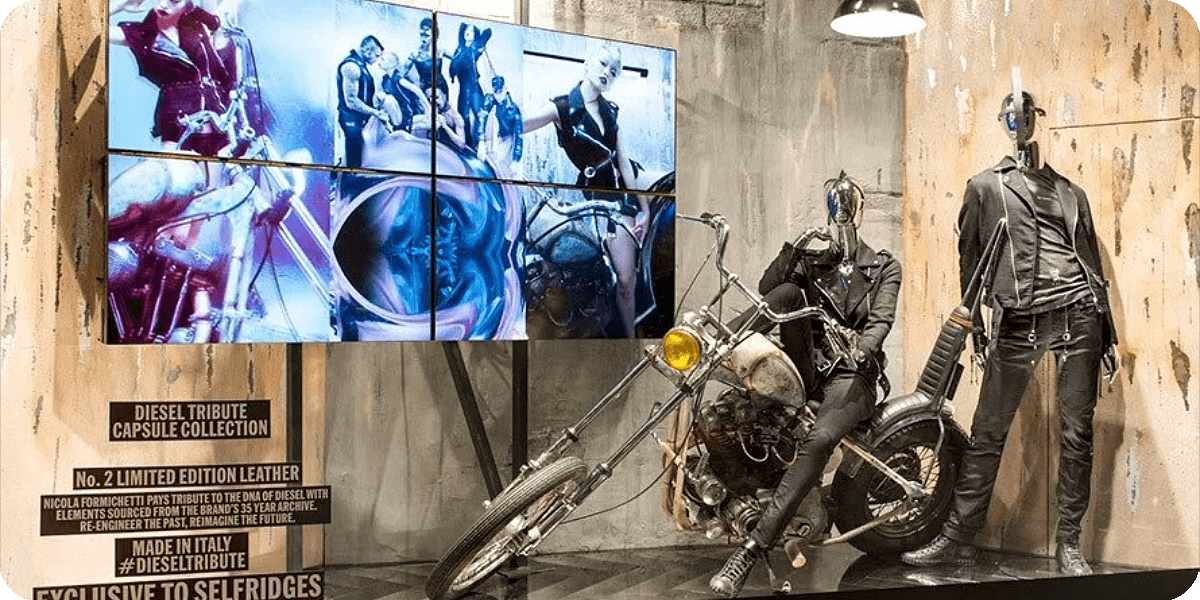

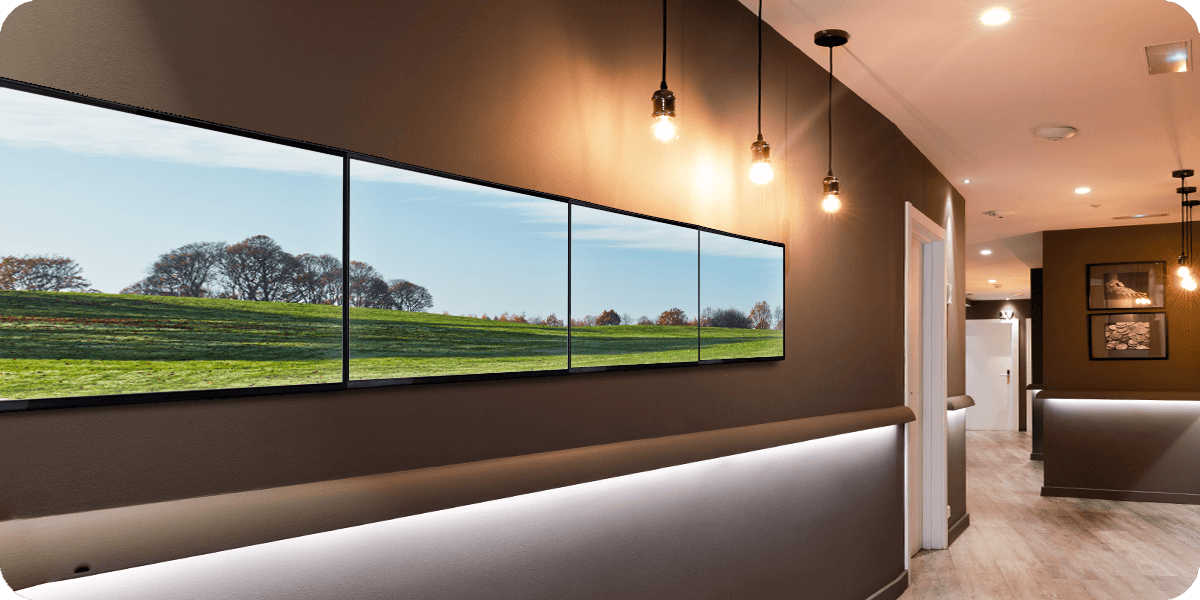

The SW-0204-VW 4x HDMI 2.0 Video Wall processor is an advanced 2x inputs (alternative) and 4x outputs video wall processor, providing video wall layout of 1×4 and 2×2 (rows x columns) with 4K and ultra-wide resolution support, independent analog audio output and image scaling. It also supports a user-friendly Web-UI, RS232 and Telnet for optimal flexibility control.

AUDIO AND VIDEO

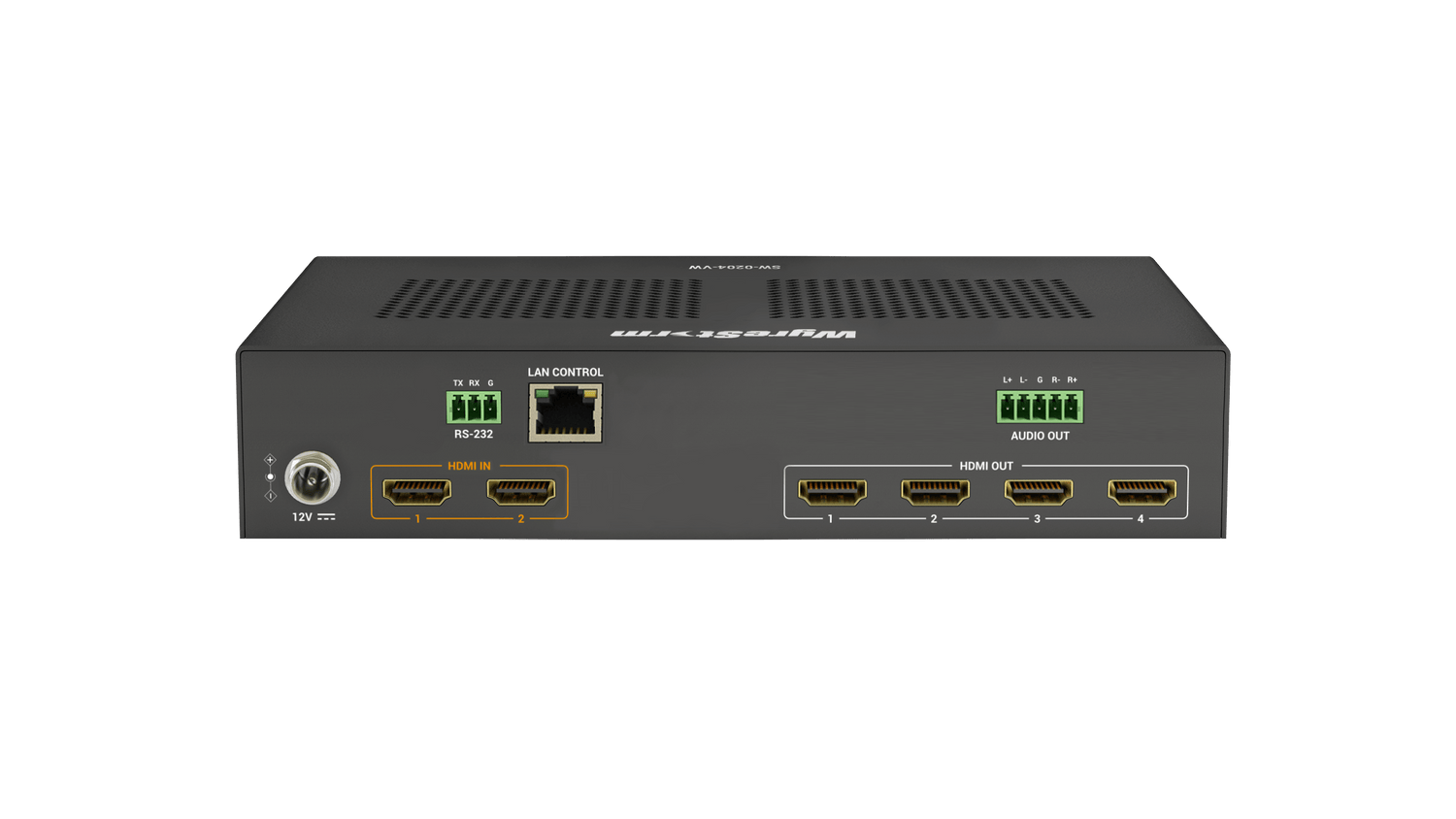

Inputs

2x HDMI IN: 19-pin type A

Outputs

4x HDMI OUT: 19-pin type A
1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input)

Audio Formats

PCM 2ch Analog

Input Video Resolution

800 x 6008, 1024 x 7688, 1280x720P6,7,8 , 1280 x 7688, 1280 x 8008, 1280 x 9608, 1280 x 10248, 1360 x 7688, 1366 x 7688, 1440 x 9008, 1600 x 9008, 1600 x 12008, 1680 x 10508,1920x1080P6,7,8 , 1920 x 12008, 3840 x 6008, 3840x2160P2,3,5,8* , 4096x2160P2,3,5,8*

1=at 23.98 Hz, 2=at 24 Hz, 3=at 25 Hz, 4=at 29.97 Hz, 5=at 30 Hz, 6=at 50 Hz, 7=at 59.94 Hz, 8=at 60 Hz, 9=at 100 Hz, 10=at 120 Hz

Output Video Resolution (Max)

Auto-Scaler (scale up and down to any resolution —
up to 4K@60Hz)
1920x1080p @60Hz 4:4:4 8bit
3840x2160p @60Hz 4:4:4 8bit
4096x2160p @60Hz 4:4:4 8bit

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.3 | EDID | CEC

RS-232

1x RS-232: 3-pin Phoenix Female | Video-Wall Processor Control
Routable RS-232 Device Control | Telnet commands supported

Ethernet

1x LAN: 8-pin RJ-45 Female | Web UI | Video-Wall Control and Ethernet

POWER

Power Supply

DC 12V/3A

ENVIRONMENTAL

Operating Temperature

0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature

-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

Dimensions

42mm/1.65in x 215mm/8.46in x 140.2mm/5.52in

REGULATORY

Supported Standards

DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020

Specifications
  • Unit of Measure
    EACH
  • Class
    Processors
