Wyrestorm | SKU:
EX100H2

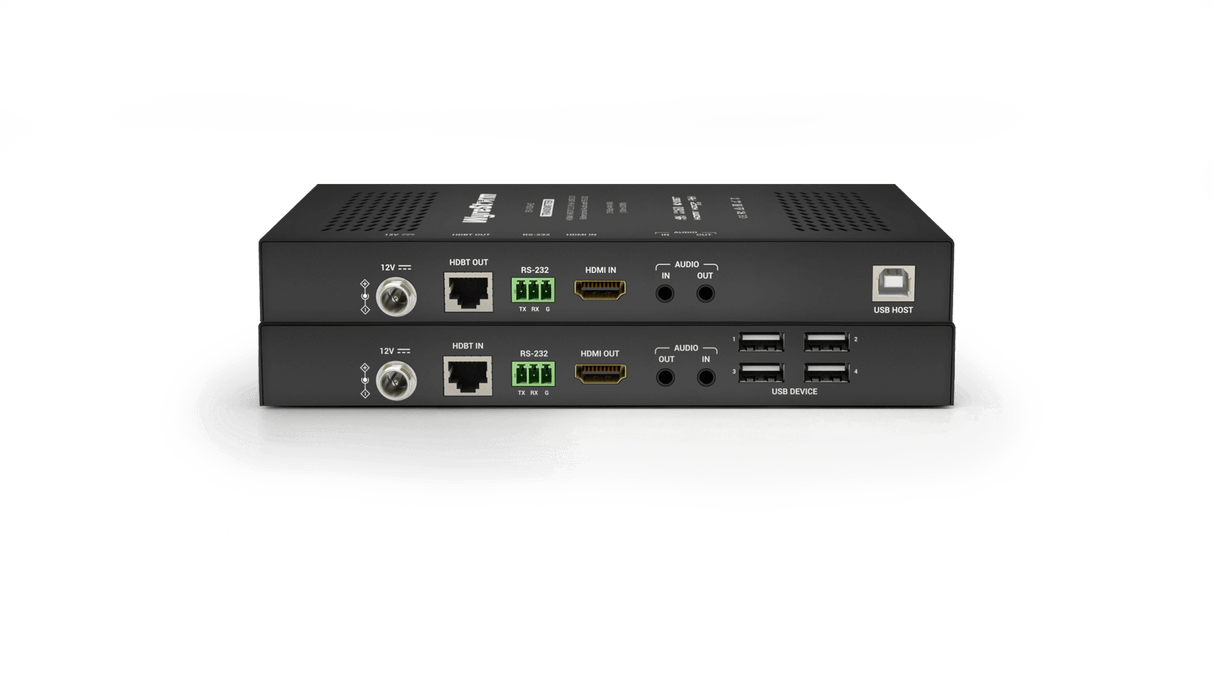

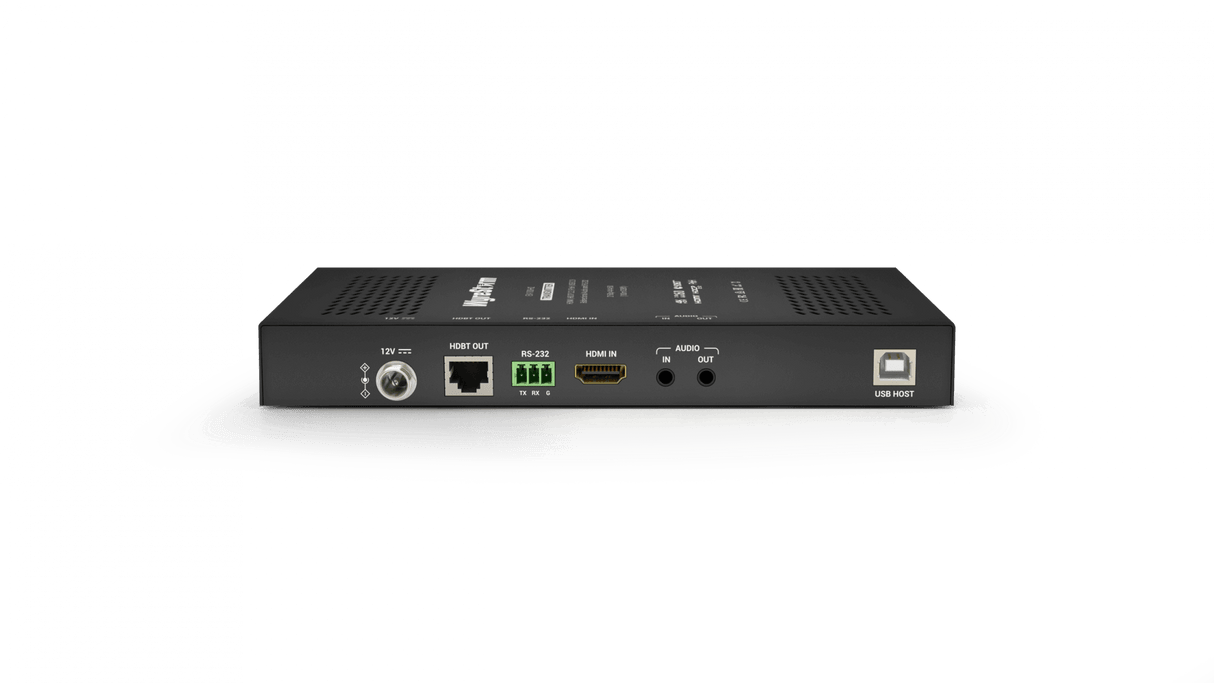

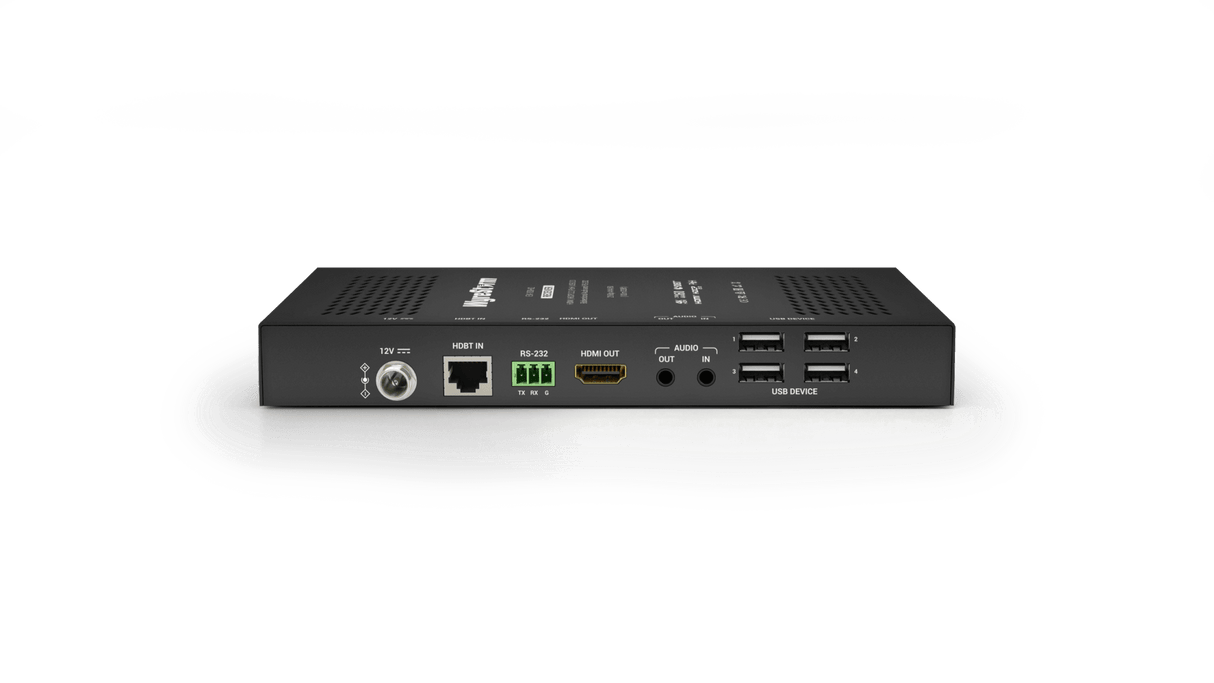

4K60Hz 4:2:0 HDBT 2.0 Extender Set | PoH | USB 2.0 |Analog Audio & RS-232 Passthrough (4K: 100m/328ft) (EX100H2)
Sold As: EACH
4K60Hz 4:2:0 HDBT 2.0 Extender Set | PoH | USB 2.0 |Analog Audio &...
Description
Description
The EX-100-H2 uses the powerful HDBaseT 2.0 chipset to send along 4K, USB, PoH and HD audio up to 100m/328ft with a single Cat 6 cable. This extender hosts the perfect combination of features to give you the tools you need to set up your next conference or presentation. With separate audio lanes, you’re free to send audio independently to overlay your presentation.
With data transfers in mind, the EX-100-H2 is equipped with the fastest USB hardware HDBaseT is currently capable of; USB 2.0 and up to 190Mbps, which is everything you need to set up HD webcams, smart whiteboards, transfer data and so much more!
HDBaseT Class C
Encoding Data Rate
10.2Gbps
End to End Latency
10μs (microseconds)
Audio Formats
2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos
Video Resolutions (max)
1920x1080p @60Hz 12bit
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @30Hz 12bit 4:2:2 HDR
3840x2160p @30Hz 8bit 4:4:4 HDR
Supported Standards
DCI | RGB | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
340MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | Line Audio | 1-way PoH (TX powers RX) | Bidirectional RS-232 | CEC
RS-232
1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
USB
1x Type B (host | 4x Type A (device)
Maximum uplink speed: 190Mbps
POWER
Power Supply
12V DC 2A
Max Power Consumption
12W
