Wyrestorm | SKU:
MX0808H2AMK2

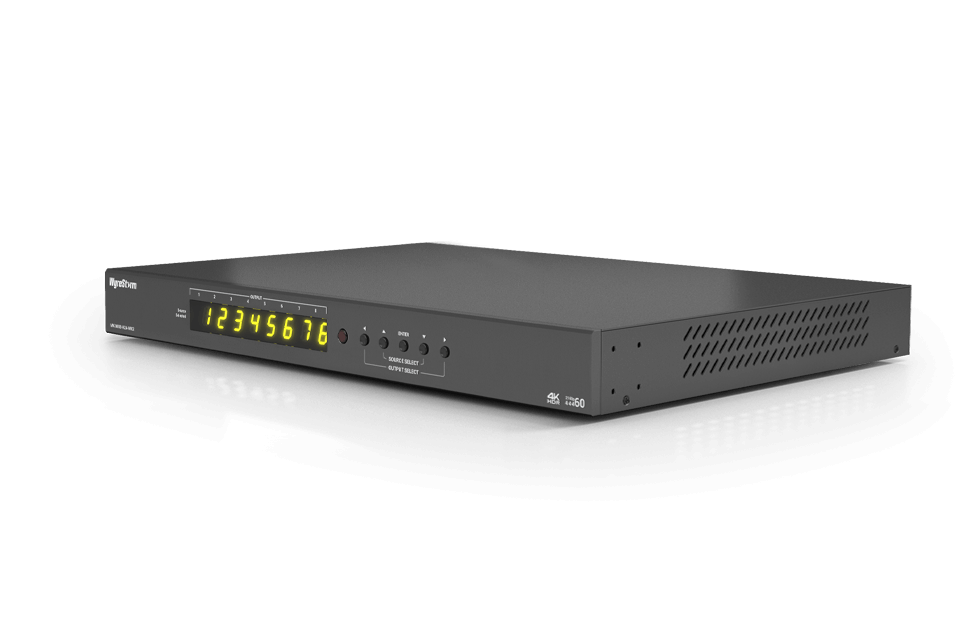

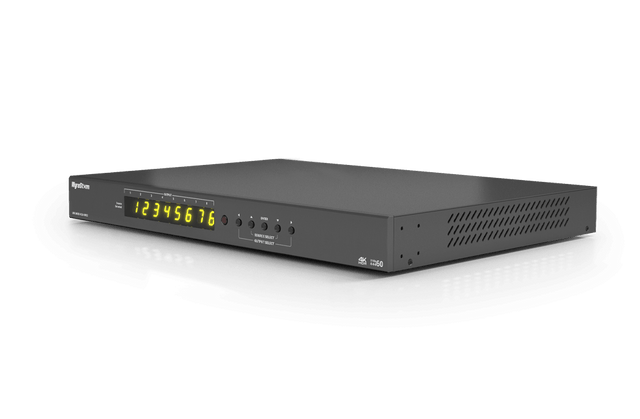

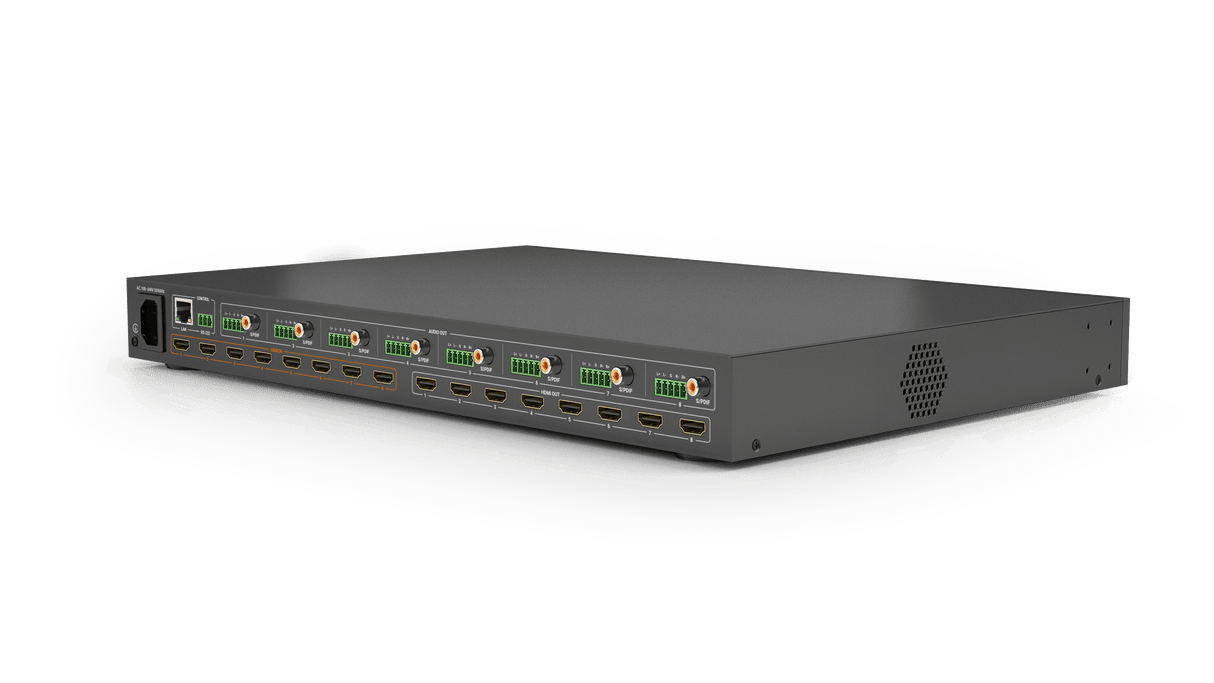

4K60Hz 4:4:4 8x8 HDMI Matrix | Dolby Vision & HDR | Scaling Outputs | Balanced Audio De-embed | ARC | CEC | Sygma (MX0808H2AMK2)
Sold As: EACH
4K60Hz 4:4:4 8x8 HDMI Matrix | Dolby Vision & HDR | Scaling Out...
Description
Description
The MX-0808-H2A-MK2 is a welcome refresh to the powerful line of H2A pure HDMI switchers. The MK2 is familiar on the surface but has a host of improvements and added features. To start, the HDMI outputs now feature 5K & 1080p downscalers promoting easier integration of mixed resolution displays into a single system. The HDMI outputs also now support Audio Return Channel from smart TVs to bring audio from apps like Netflix, Prime Video, Hulu, etc.…to an external audio system. Speaking of audio, the analog audio outputs have been updated to balanced connections to ensure there is no loss in fidelity or interference.
8x HDMI In
Outputs
8x HDMI Out
8x 5-pin Balanced Analog Audio
8x S/PDIF Digital Audio
Audio Formats
2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
3840x2160p @50Hz 10bit 4:2:2 HLG
4096x2160p @60Hz 8bit 4:4:4
5120×2160 @60Hz 4:2:0
5120×1440 @60Hz 4:4:4
Supported Standards
DCI | RGB | HDR10 | HDR10+ | Dolby Vision | HLG | BT.2020
Maximum Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.2 | EDID | CEC (display power trigger)
RS-232
1x 3-pin Phoenix for API control
LAN
1x 8-pin RJ-45 for API control
POWER
Power Supply
100~240V AC 50/60Hz AC
Max Power Consumption
60W
